Подробная информация о продукте:
Оплата и доставка Условия:
|
| Колесо привода: | 4x2 | Тип передачи: | Руководство |
|---|---|---|---|
| Размеры (l x w x h) (mm): | 5600*2300*2200mm | условие: | новый |
| Том танка: | 6000Л | Хранение: | вода |
| Стандарт эмиссии: | Евро 4,5,6 | Цвет: | Клиент требует |
| Лошадиная сила: | 98hp | Большой вес корабля: | 9600кг |
| Тип топлива: | Дизельный | Гарантия: | 1 год |
| Название продукта: | Тележка воды танка, тележка воды тележки воды распыляя для продажи | Материал танка: | Сталь углерода |
| Имя: | bowser воды, тележка цистерны с водой, брызгая карамболь тележки воды, разбрызгивающая головка тележ | ||
| Высокий свет: | тележка Bowser воды 6000L,Тележка Bowser воды ISUZU Giga,Тележка спринклера воды ISUZU Giga |
||
Hotsale ISUZU Giga 6000L Water Delivery Tank Water Sprinkler Truck Water Bowser Tank Truck
Description:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump
Specifications
| Product Name | ISUZU 6000L Water Bowser Tanker Truck | ||
| Chassis parameters | Overall dimensions | mm | 5600*2300*2200 |
| Gross weight | kg | 9,600 | |
| Kerb weight | 3,600 | ||
| Wheelbase | mm | 3,360 | |
| Driving type | 4*2 | ||
| Chassis model | ISUZU Giga Light-duty | ||
| Tire size | 7.00R16 | ||
| Number of Tires | 6+1 | ||
| Passengers in cab | 3 | ||
| Engine | Engine model | 4KH1CN5LS | |
| Type of fuel | Diesel | ||
| Power | 98HP | ||
| Max speed | Km/h | 110 | |
| Emission standard | EURO 4,5,6 | ||
| Water Tanker performance | Tanker Body | 6,000L | |
| Body Material | Carbon Steel | ||
| Tanker Shape | Ellipse as standard | ||
| Water Pump | China Famous Brand 50m3/h | ||
| Optional Italy, Euro brand | |||
| Washing Width | ≥20 M | ||
| Washing Speed | 5~20 km/h | ||
| Rear Cannon Range | ≥50 M | ||
| Spray Bar | Optional | ||
| Hose & Hose-carrier | Factory standard | ||
| Control Panel | English | ||
| Walkway and Hand rail | Yes | ||
| Painting | Two primers, and one final paint coating | ||
| Color & LOGO | According to wish | ||
| Factory standard | “U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... | ||
| Documents | English operation manual, Spare parts list, and all necessary export docs. | ||
| Optional equipment |
1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent |
||

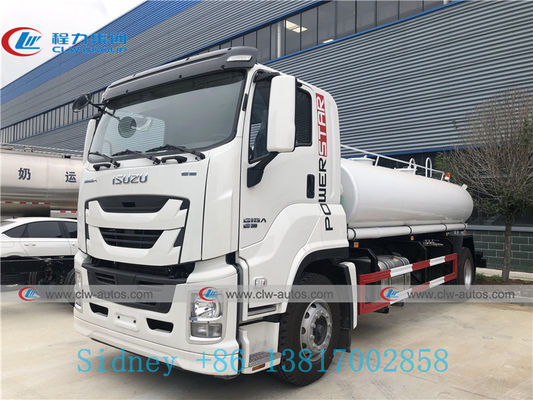

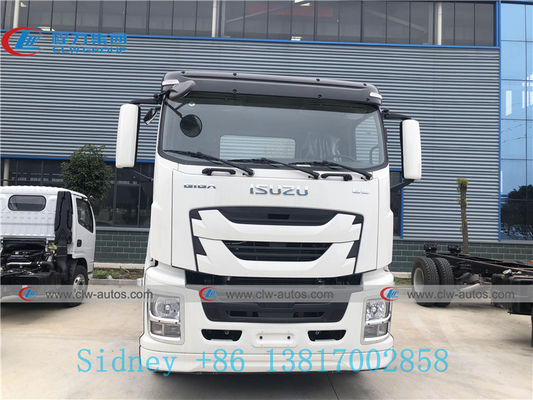

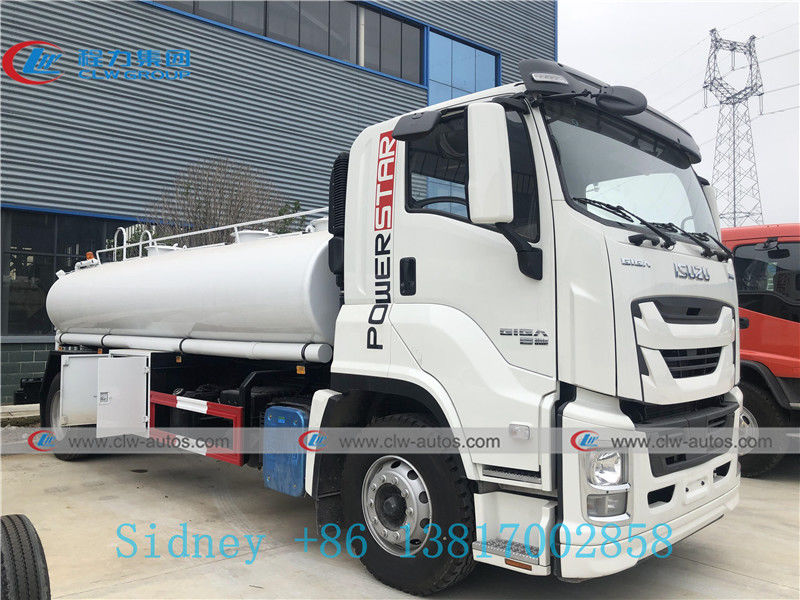

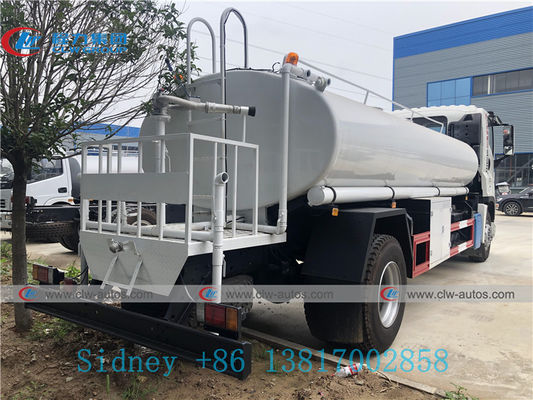

Product photos

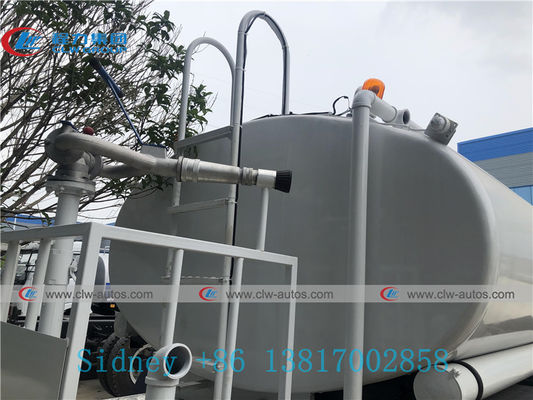

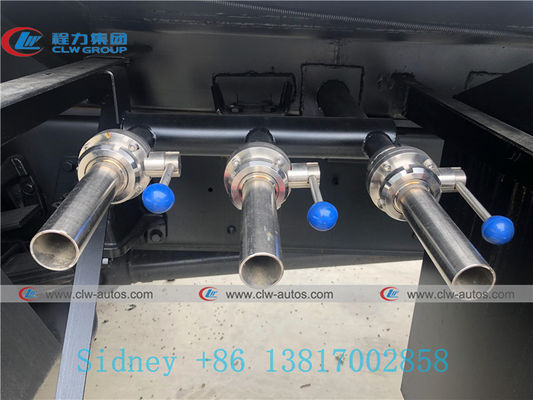

Photos of Details:
Factory overview
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
